Adjustable RGB Controller 5M 5050 RGB LED Strip Light Kits

Manual Adjustable RGB Controller 5M 5050 RGB Kits

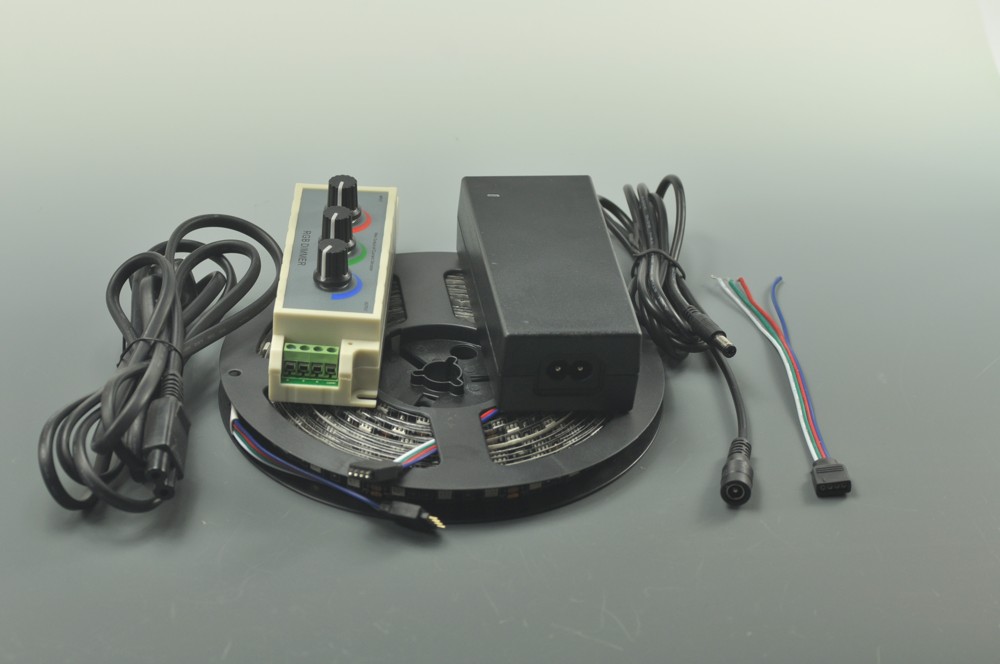

We need the following Products:

1 x 5m RGB Flexible LED Strip Light

1 x LED Power Supply 12V 5A 60W With Power Cord

1 x LED RGB Controller

1 x Female DC Connecter 14cm

1 x RGB 4 Core Flex Cable Line 8cm

1)Connect the RGB 4 Core Flex Cable Line to Output Of the LED RGB Controller, Red line connect to R, Green line connect to G, Blue Line connect to B, White Line connect to V+; another side Connect to the RGB Strip Lights;

2)Then connect the Female LED DC Connecter to input of the LED RGB Controller, Red line connnect to V+, Black Line connect to V-; another side Connect to the 12V 5A 60W LED power supply;

3)Connect Power Cord(US/EU/AU/UK) to LED power Supply, then plug into 110V/220V input, the connnection is finish;

4)Turn on the RGB controller, you can use it to control the RGB LED strip lights.

Connect 5050 RGB LED Strip Lights To Wireless 8 Keys RGB Controller

5M 5050 3528 RGB LED Strip Light Switch Panel with Wireless 8 Keys RGB LED Strip Kit

We need the following Products:
1 x 5m RGB Flexible LED Strip Light
1 x Power Supply 12V 5A 60W With Power Cord
1 x LED 8 Keys Switch Strip RGB Controller
1 x Female DC Connecter 14cm
1 x RGB 4 Core Flex Cable Line 8cm

1)Connect the RGB 4 Core Flex Cable Line to Output Of the LED RGB Controller, Red line connect to R, Green line connect to G, Blue Line connect to B, White Line connect to V+; another side Connect to the RGB Strip Lights;

2)Then connect the Female LED DC Connecter to input of the LED RGB Controller, Red line connnect to V+, Black Line connect to V-; another side Connect to the 12V 5A 60W LED power supply;

3)Connect Power Cord(US/EU/AU/UK) to LED power Supply, then plug into 110V/220V input, the connnection is finish;

4)Turn on the RGB controller, you can use is to control the RGB LED strip lights.

5630 3 LED Modules 78x15MM 12V 1.5W Waterproof LED Modules Description

5630 3 LED Modules 78x15MM 12V 1.5W Waterproof LED Modules:

LED Type:5630
Size(mm):78x15MM
Light Color:Pure White/Warm White
Input:12V DC
Power(W):1.5W
Waterproof:IP65
Luminous:55-60lm
Life:50,000 hrs
Materials:Plastic
Temperature:-40℃- 60℃ (-40℉~140℉)

Applications:
Widely used in Car,stereo shine word, marking, light box, landscape layout and stage adornment, spray, blister word, for halls, bars, office , home and exhibition lighting Garden and exterior lighting etc.

Sign Board Backlighting
Light box Sign box Backlighting
Channel Letters Backlighting
Advertisement Signs Backlighting
Advertisement Light Boxes Backlighting
Commercial Sign Backlighting
Stage Backlighting
Message Display Backlighting

How To Cutting And Mount The LED Strip Lights

Free Cutting And Mount The LED Strip Lights

Mount LED Strip Lights:

1)3M with the back of LED Strips Light, you can mount it everywhere
2)You can unse the mounting clips to mount the LED Strip Lights

Cutting LED Strip Lights
You should to cut the led strips by marks every 3LEDS
